美制过渡接头
名称：美制JIC螺纹74°锥面密封过渡接头
详细信息

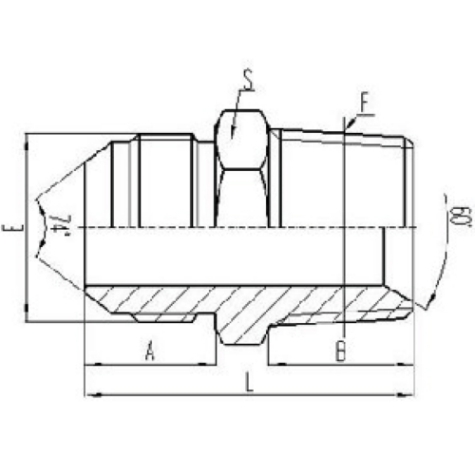

美制JIC螺纹74°锥面密封过渡接头的详细介绍：
|
代 号
|
螺纹 THREAD
|
尺 寸 DIMENSIONS
|
||||
|
PART NO.
|
E
|
F
|
A
|
B
|
S
|
L
|
|
1JN-04-02
|
7/16"X20
|
Z1/8"X27
|
14
|
10.5
|
12
|
30
|
|
1JN-04
|
7/16"X20
|
Z1/4"X18
|
14
|
15
|
17
|
34
|
|
1JN-04-06
|
7/16"X20
|
Z3/8"X18
|
14
|
16
|
19
|
35
|
|
1JN-04-08
|
7/16"X20
|
Z1/2"X14
|
14
|
19.5
|
22
|
41
|
|
1JN-05-02
|
1/2"X20
|
Z1/8"X27
|
14
|
10.5
|
14
|
30
|
|
1JN-05-04
|
1/2"X20
|
Z1/4"X18
|
14
|
15
|
17
|
34
|
|
1JN-05-06
|
1/2"X20
|
Z3/8"X18
|
14
|
16
|
19
|
35
|
|
1JN-06-02
|
9/16"X18
|
Z1/8"X27
|
14
|
10.5
|
17
|
30
|
|
1JN-06-04
|
9/16"X18
|
Z1/4"X18
|
14
|
15
|
17
|
34
|
|
1JN-06
|
9/16"X18
|
Z3/8"X18
|
14
|
16
|
19
|
35
|
|
1JN-06-08
|
9/16"X18
|
Z1/2"X14
|
14
|
19.5
|
24
|
41
|
|
1JN-06-12
|
9/16"X18
|
Z3/4"X14
|
15
|
19.5
|
30
|
44
|
|
1JN-08-04
|
3/4"X14
|
Z1/4"X18
|
16.7
|
15
|
22
|
39
|
|
1JN-08-06
|
3/4"X14
|
Z3/8"X18
|
16.7
|
16
|
22
|
44
|
|
1JN-08
|
3/4"X14
|
Z1/2"X14
|
16.7
|
19.5
|
24
|
44
|
|
1JN-08-12
|
3/4"X14
|
Z3/4"X14
|
16.7
|
19.5
|
30
|
46
|
|
1JN-10-06
|
7/8"X14
|
Z3/8"X18
|
19.3
|
16
|
24
|
42.5
|
|
1JN-10-08
|
7/8"X14
|
Z1/2"X14
|
19.3
|
19.5
|
24
|
46.5
|
|
1JN-10-12
|
7/8"X14
|
Z3/4"X14
|
19.3
|
19.5
|
30
|
48.5
|
|
1JN-12-06
|
1.1/16"X12
|
Z3/8"X18
|
22
|
16
|
30
|
48
|
|
1JN-12-08
|
1.1/16"X12
|
Z1/2"X14
|
22
|
19.5
|
30
|
51
|
|
1JN-12
|
1.1/16"X12
|
Z3/4"X14
|
22
|
19.5
|
30
|
51
|
|
1JN-12-16
|
1.1/16"X12
|
Z 1"X11.5
|
22
|
25.5
|
36
|
57
|
|
1JN-16-06
|
1.5/16"X12
|
Z3/8"X18
|
23
|
17
|
36
|
51
|
|
1JN-16-08
|
1.5/16"X12
|
Z1/2"X14
|
23
|
20
|
36
|
53
|
|
1JN-16-12
|
1.5/16"X12
|
Z3/4"X14
|
23
|
19.5
|
36
|
53
|
|
1JN-16
|
1.5/16"X12
|
Z 1"X11.5
|
23
|
25.5
|
36
|
58
|
|
1JN-16-20
|
1.5/16"X12
|
1.5/8"X12
|
23
|
26.5
|
46
|
62
|
|
1JN-20-12
|
1.5/8"X12
|
Z3/4"X14
|
24.3
|
20
|
46
|
57.5
|
|
1JN-20-16
|
1.5/8"X12
|
Z 1"X11.5
|
24.3
|
25.5
|
46
|
62
|
|
1JN-20
|
1.5/8"X12
|
Z1.1/4"X11.5
|
24.3
|
26.5
|
46
|
63
|
|
1JN-20-24
|
1.5/8"X12
|
Z1.1/2"X11.5
|
24.3
|
27.5
|
50
|
65.5
|
|
1JN-24
|
1.7/8"X12
|
Z1.1/2"X11.5
|
27.5
|
27.5
|
50
|
70.5
|
|
1JN-24-16
|
1.7/8"X12
|
Z 1"X11.5
|
27.5
|
26.5
|
50
|
67.5
|
|
1JN-24-20
|
1.7/8"X12
|
Z1.1/4"X11.5
|
27.5
|
26.5
|
50
|
67.5
|
|
1JN-24-32
|
1.7/8"X12
|
Z2"X11.5
|
27.5
|
27.5
|
65
|
71.5
|
|
1JN-32
|
2.2/2"X12
|
Z2"X11.5
|
34
|
27.5
|
65
|
78
|
|
1JN-32-20
|
2.2/2"X12
|
Z1.1/4"X11.5
|
34
|
26.5
|
65
|
77
|
|
1JN-32-24
|
2.2/2"X12
|
Z1.1/2"X11.5
|
34
|
27.5
|
65
|
77
|
注：螺母及衬套需另行订货。管子直径D为公制时，配用螺母及衬套分别选用HNB200、HNB500。管子直径为英制时，配用螺母及衬套分别选用HNB200、HNB300。
