代 号

螺纹 THREAD

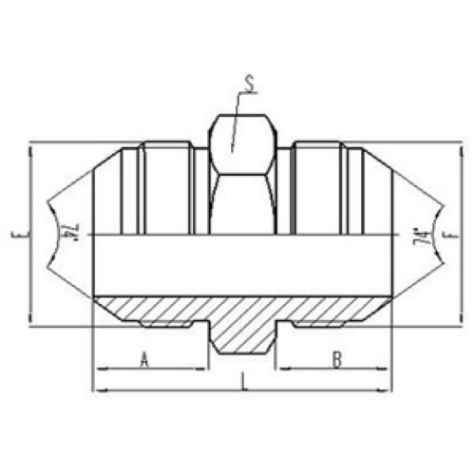

尺 寸 DIMENSIONS

PART NO.

E

F

A

B

L

S

1J-02

5/16"X24

5/16"X24

11.4

11.4

29

12

1J-03

3/8"X24

3/8"X24

12.2

12.2

30.5

12

1J-04

7/16"X20

7/16"X20

14

14

34

12

1J-05

1/2"X20

1/2"X20

14

14

34

14

1J-06

9/16"X18

9/16"X18

14.4

14.1

34.2

17

1J-06-08

9/16"X18

3/4"X16

14.1

16.7

38.5

22

1J-06-12

9/16"X18

1.1/16"X12

14.1

21.9

46

30

1J-08

3/4"X16

3/4"X16

16.7

16.7

42

22

1J-10

7/8"X14

7/8"X14

19.3

19.3

46.5

24

1J-12

1.1/16"X12

1.1/16"X12

21.9

21.9

54

30

1J-14

1.3/16"X12

1.3/16"X12

22.6

22.6

56

32

1J-16

1.5/16"X12

1.5/16"X12

23.1

23.1

57

36

1J-16-24

1.5/16"X12

1.7/8"X12

23.1

27.5

65.5

50

1J-20

1.5/8"X12

1.5/8"X12

24.3

24.3

62

46

1J-24

1.7/8"X12

1.7/8"X12

27.5

27.5

70

50

1J-32

2.1/2"X12

2.1/2"X12

33.9

33.9

85

65
